Plans of the Focke Wulf Fw 190D

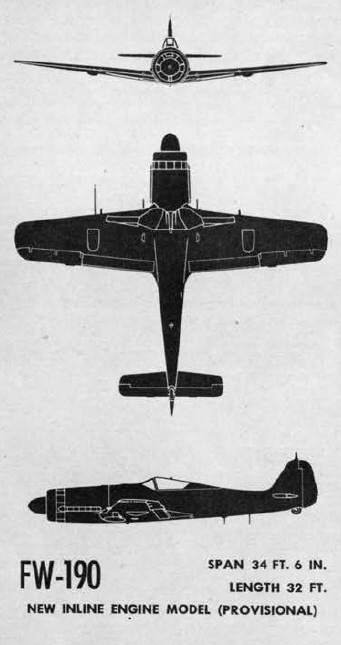

These US plans show the long nose Focke Wulf Fw 190D 'Dora', which was powered by an inline engine with a circular radiator, which allowed it to keep the radial engined appearance of the early short nosed models.
