USS Marblehead (CL-12) Radar Installation, 1944

USS Marblehead (CL-12) Radar Installation, 1944

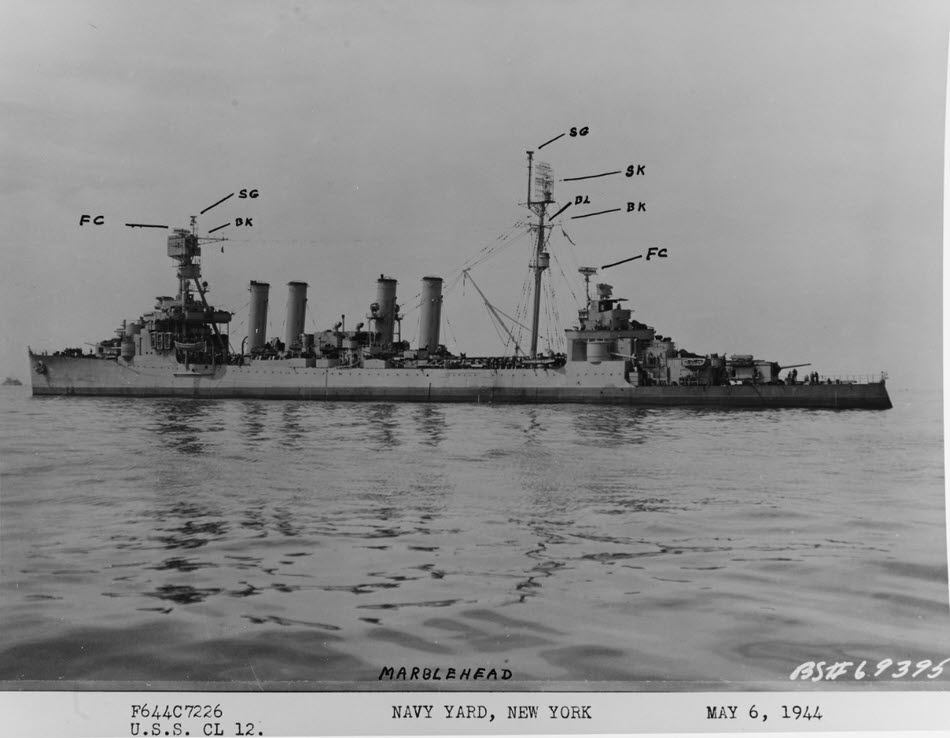

This picture of the Omaha class light cruiser USS Marblehead (CL-12) shows the radar setup as it was on 6 May 1944, when she was at the New York Navy Yard. Picked out are two Fire Control radars (FC), two SG Microwave Surface and Low Air Search Radar sets (mounted as high as possible to improve their range), one SK Air Search Radar (with its 'mattress' antenna), two SG Surface Search Radar antenna (mounted high on each mast in the circular structures, and used to detect enemy ships and land,
