Sectional Drawing of V-1

Sectional Drawing of V-1

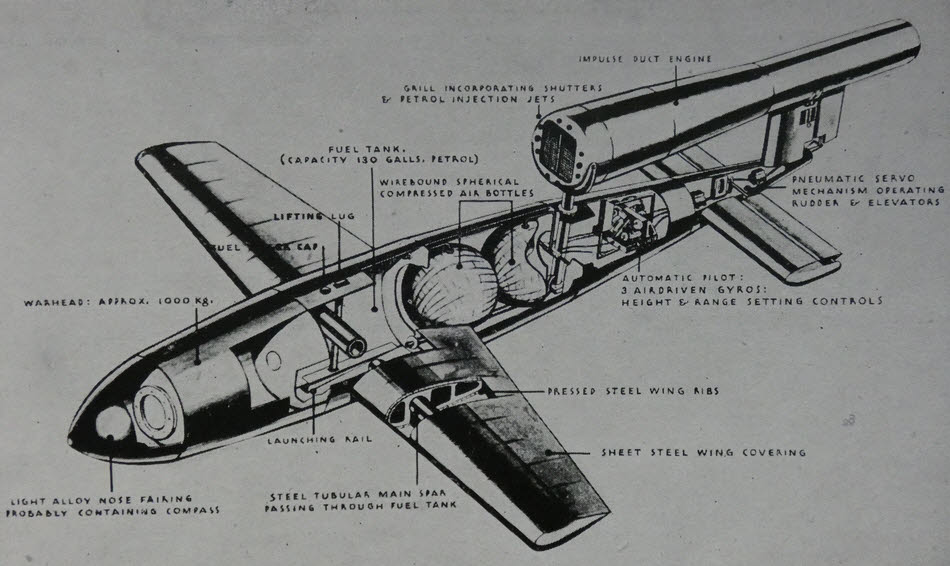

This sectional drawing of a V-1 was published in Britain in the summer of 1944, only a fwe weeks after the first V-1 was launched on 13 June 1944. By this point enough of them had been captured fairly intact to allow this to be a pretty accurate drawing.
