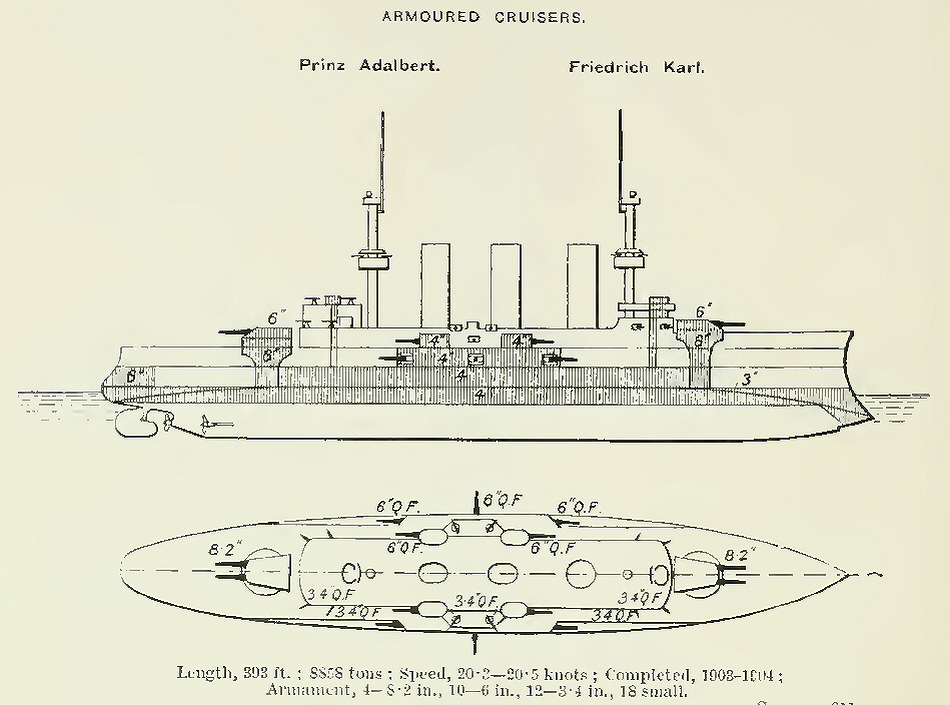

Plans of SMS Prinz Adalbert
These plans show the Prinze Adalbert armoured cruisers, which followed the same general pattern as most German armoured cruisers of the period. They were armed with four 210mm (8.2in) guns in twin turrets fore and aft and ten 150mm (5.9in) guns in a two level citadel. The lower three guns on each side were too close to the sea and tended to flood in heavy weather.
