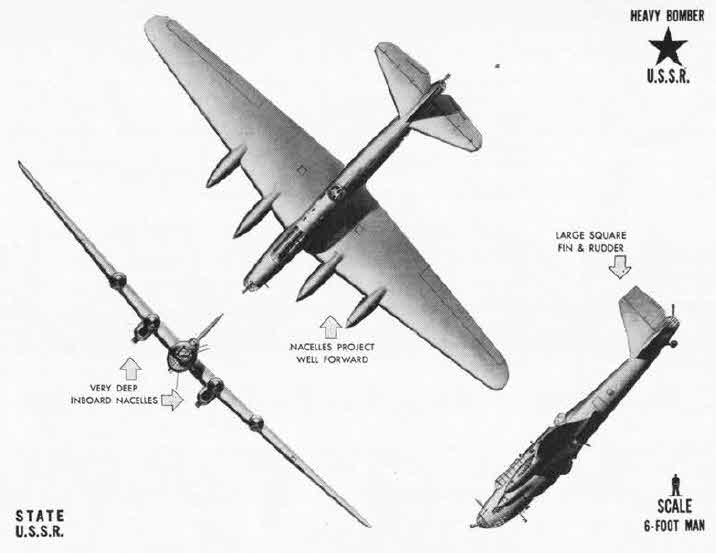

Here we see top, front and left plans of the Petlyakov Pe-8, the only four engined heavy bomber to see service with the Soviet Union during the Second World War. These views show the engine nacelles jutting in front of the wing, and the long tapered wings, almost as thick as the outer engine nacelles.
