DFW C.V from the right

DFW C.V from the right

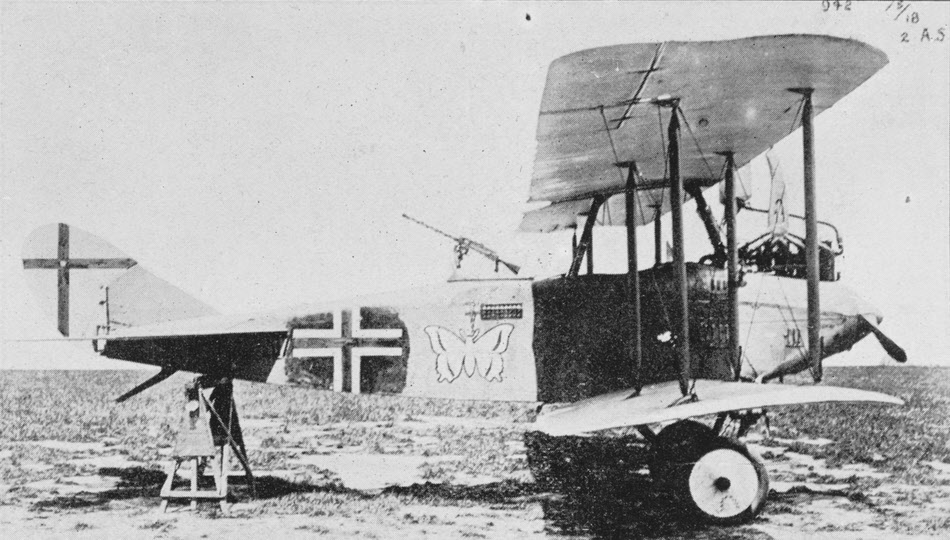

This side view of the DFW C.V gives a good view of the engine installation with its largely exposed cylinders, the exhausts gathered into a single chimney venting above the upper wing and the radiator mounted on the front of the upper wing and connected to the engine by rather vulnerable looking pipes.
