C-109 Modification Manual - p.32 Provision for Command Deck Tanks, C-109

C-109 Modification Manual - p.32 Provision for Command Deck Tanks, C-109

Many thanks to Paul Stahl Jr, for sending us this modification manual for the C-109 fuel transport, an modified verison of the B-24 bomber. His father, Paul Stahl Sr, was the project engineer for the C-109.

C-109 Gallery
Consolidated C-109 Gallery

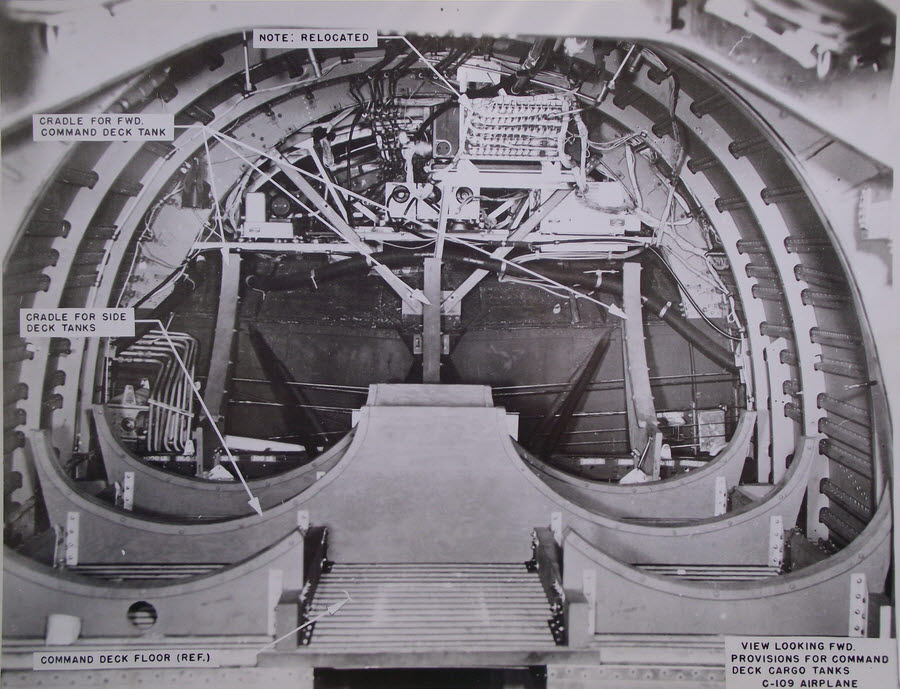

Page 32 - View Looking Fwd Provisions for Command Deck Cargo Tanks C-109 Airplane

Here we see the racks for the forward fuel danks on the Command Deck of the C-109
